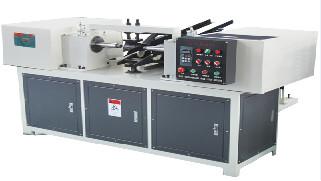

Fully automatic Economical Paper tube core grinding machine
1. The chain and curve wheel are lubricated by hand pump, which is
easy to operate.
2. The frequency converter is a product of enregie, which is a
famous brand in China, with high practical value and low failure
rate. The speed of the machine can be adjusted by controlling the
motor with frequency converter.
3 The main executive components of the electric appliance are Chint
products; the cylinder components are Tianao products. All of the
above are well-known brands in China, which are durable and of high
practical value.
4. The slide way of paper tube clamp is square slide, which avoids
the change of clamp position caused by traditional circular slide.
Technical parameter
| Grinding type | Fully automatic grinder |
| Technical parameter | Control system |
Paper tube diameter | Φ40-100(mm) |
Control mode |
Frequency control |
Paper tube thickness | 3-15(mm) | Major Executing Devices (Contactors, etc.) |
CHINT products |
Length of paper tube | 80-300(mm) | Signal elements
(proximity switches, etc.) |
Hugong |
Working air pressure | 0.6Mpa |
Pneumatic components | CEHNGDI/SUOPAI/
TIANAO |
Control mode |
Automatic |
Frequency converter |
ENERGY |
Feeding mode |
Automatic feeding and unloading |
Linear guide rail |
Square |
Tube grinding speed | 0-35pcs/min | | |
Total power | 2.2kw*3 | | |
Number of operators | 1people | | |
our client
Companies rely on scientific andtechnological progress, the
introduction ofhigh technology, is committed to newproduct
development and technologyimprovement, and is equipped with
perfectsales network and service system, theproducts have been sold
all over thecountry, but also with domestic and foreigntrade import
and export companycooperation, products have been exportedto South
Asia, West Asia, Middle East, Africa, North and South America,
Russia, Ukraine and other countries. At present, thecompany has set
up its own foreign tradesales department, will further
developforeign trade.
,
FAQ
1.Whether the product can achieve quality assurance?
Our factory has applied for ISO9001 quality inspection, our
equipment is of high quality and high quality.
2.your warrant and after-sale?
12 month for whole machine quality (not include easy broken spare
parts)we offer whole life technical support freely, and offer any
related guide by video manual ect.
3.How can we get the matching accessories or wearing parts
conveniently?
During the warranty, Our company can replace the accessories for
free .Out of warranty,we c an provide them at the preferable price.
In fact, the wearing parts are standard parts that you c ould get
it in your country at your convenience.
For other questions we do not mention here,please feel free contact
us.
