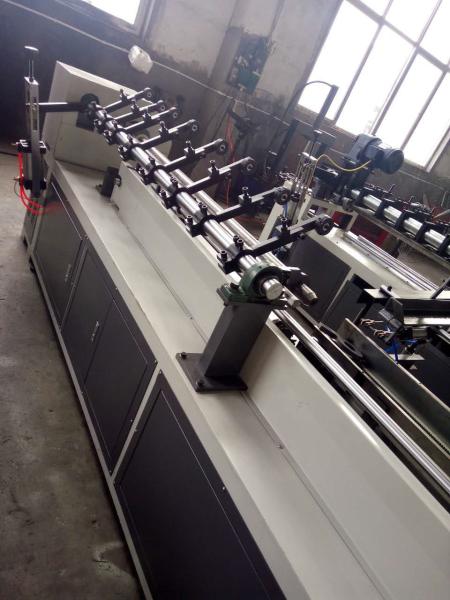

Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm)

Fucheng Tiansheng paper tube machinery Co.,Ltd
Contact Now
    Buy cheap Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm) from wholesalers

    Buy cheap Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm) from wholesalers
    • Buy cheap Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm) from wholesalers
    • Buy cheap Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm) from wholesalers

    Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm)

    Ask Lasest Price
    Brand Name : TIANSHENG
    Model Number : CNC
    Certification : ISO9001
    Price : Price negotiation
    Payment Terms : T/T
    Supply Ability : 5SETPERMONTH
    Delivery Time : 45DAYS
    • Product Details
    • Company Profile

    Air spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm)

    Automatic spinning paper tubecore precision cutting machine


    Paper tube diameter:Φ30-70(mm)

    Paper tube thickness:1-5(mm)

    Length of cut pipe:90-1350(mm)

    Cutter number:8 groups (standard)


    Machine parameters


    The main specifications and equipment
    Type
    Fully automatic precision cutting machine
    Technical parameterControl system

    Paper tube diameter
    Φ30-70(mm)
    PLC controller

    Xinjie

    Paper tube thickness
    1-5(mm)Interface
    Kunlun

    Length of cut pipe
    90-1350(mm)
    Program version
    cx-pq.04

    Cutter number

    8 groups (standard)
    Major Executing Devices (Contactors, etc.)
    CHINT

    Working air pressure
    0.6MpaSignal elements
    (proximity switches, etc.)

    Hugopng

    Main motor power
    2.2kw
    Cylinder element
    CEHNGDI/SUOPAI/
    TIANAO

    Number of operators
    1people
    Frequency converter

    ENERGY

    Size(mm)

    Configuration device

    Host Size: L*W*H
    3900*2000mm*1100mm
    Charge

    Automation

    Cutter specification
    2*105*43mm
    Blanking

    Automation

    Total weight
    890kgAir spinning tube Automatic paper tube pipe cutting machineΦ30-70(mm)
    Drive system

    Main motor

    2.2kw Qiangsu/ Yongshun

    Main engine speed
    1400r/min

    Transmission mode

    Chain Drive

    Note: Due to the continuous updating of product technology, all data are based on the actual product.


    Our honor

    Corporate credit rating of "AAA", for manyyears by the Hebei Province PackagingFederation awarded; "Hebei excellentpackaging enterprise, was awarded:" onbehalf of the people of Hebei netinternational consumer rights day 3.15 good faith unit ", as many well-knowncolleges and universities" technologyresearch base "in 2016 by the HebeiScience and Technology Department" theidentification of SMEs in Hebei province".


    FAQ


    1. Price:
    We will provide you the FOB price at first time. The factory price,guarantee the lowest price. If you need CIF price, we will give you the quotation after asked the freight agent. The price is very transparent. And also you can use your freight agent.


    2. Pay method:
    30% deposit T/T in advance,pay the balance payment before shipment.


    3.Factory or trading company?
    We are both factory&trading company. You can find the answer from the company profile.
