    Lengthening Multi - Knife Paper Tube Cutting Machine Paper Tube Length 120-2700 Mm

    Ask Lasest Price
    Brand Name : TIANSHENG
    Model Number : CNC
    Certification : ISO9001
    Price : Price negotiation
    Payment Terms : T/T
    Supply Ability : 5SETPERMONTH
    Delivery Time : 45DAYS
    • Product Details
    • Company Profile

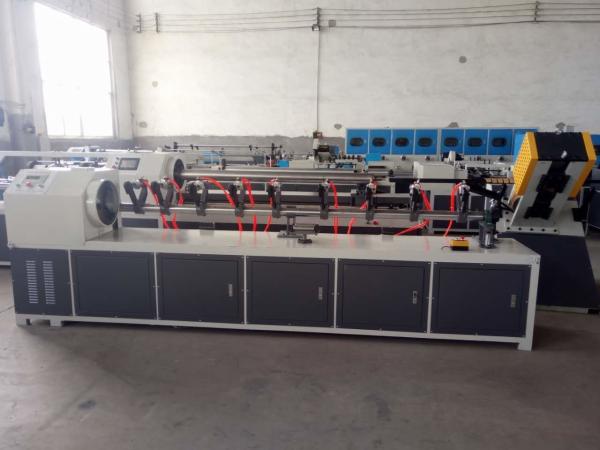

    Lengthening Multi - Knife Paper Tube Cutting Machine Paper Tube Length 120-2700 Mm

    Lengthening multi-knife paper tube cutting machine Paper tube length 120-2700

    Machine introduction

    1. Suitable for inner diameter ¢ 76-152mm of paper tube; thickness of paper tube is 3-15mm; the cutter blade is alloy blade or common blade (one of the two), which has the functions of fast cutting speed, smooth cutting end face, accurate cutting size, etc.

    2. The cutting length of paper tube is 120-2700mm.

    3. The main motor is Shanghai strong speed / Hengshui Yongshun (3.0kw), which has strong power and stable operation.

    4. The adjustment of cutter size is completed by mechanical manual, which is easy to operate.

    5. For the multi cutter pneumatic cutting tube, the cutting speed of the paper tube with the length of 120-2700mm is faster than that of the single cutter, which saves the moving time of the cutting table.


    Machine parameters


    Technical parameter

    Paper tube diameter
    Φ76-152(mm)

    Paper tube thickness
    3-15(mm)

    Length of cut pipe
    90-2700(mm)

    Cutter number

    Six groups (standard)

    Working air pressure
    0.6Mpa

    Total power
    3.0kw

    Number of operators
    1people

    Size(mm)
    Host Size:L*W*H3800mm*700mm*1150mm

    Cutter specification
    2*150*43mm

    Total weight
    600kg

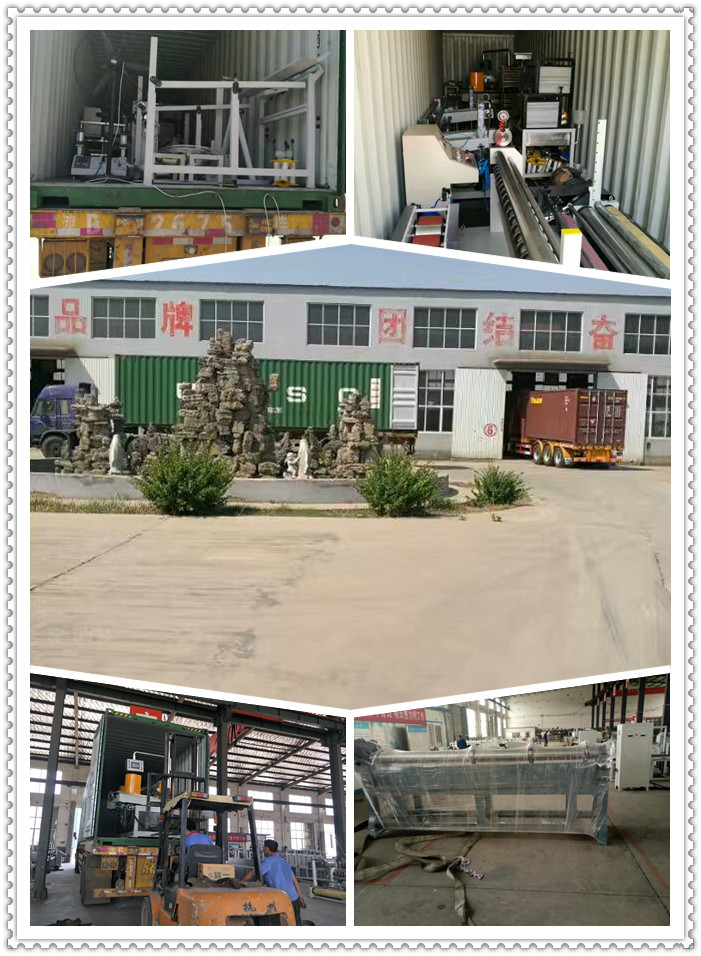

    Our customers


    Packaging Details

    All with stretch film machine, nto the container.
