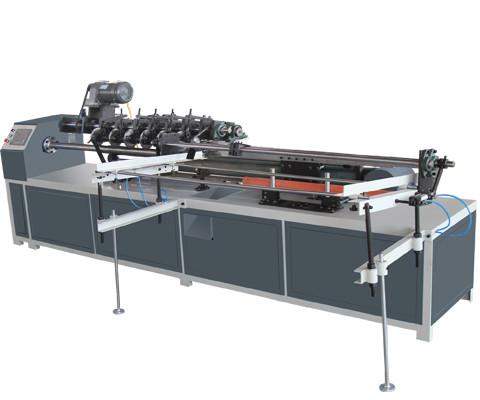

    Stable Performance Paper Core Cutting Machine Cut Pipe 120-1600 Mm Length

    Ask Lasest Price
    Brand Name : TIANSHENG
    Model Number : CNC
    Certification : ISO9001
    Price : Price negotiation
    Payment Terms : T/T
    Supply Ability : 5SETPERMONTH
    Delivery Time : 45DAYS
    • Product Details
    • Company Profile

    Stable Performance Paper Core Cutting Machine Cut Pipe 120-1600 Mm Length

    DTY paper tube core automatic cutting machine Length of cut pipe 120-1600(mm)


    Paper tube diameter:Φ50-76(mm)

    Paper tube thickness:2-8(mm)

    Length of cut pipe:120-1600(mm)

    Cutter number:8 groups (standard)


    Machine parameters



    Technical parameter

    Control system

    Paper tube diameter
    Φ50-76(mm)
    PLC controller

    Xinjie

    Paper tube thickness
    2-8(mm)
    Interface

    Kunlun

    Length of cut pipe
    120-1600(mm)
    Program version
    cx-pq.04

    Cutter number
    8(Standard)Signal element (photoelectric switch, etc.)
    Hugong

    Working air pressure
    0.6Mpa
    Major Executing Devices (Contactors, etc.)

    CHINT

    Control mode

    Touch screen

    Cylinder element
    CEHNGDI/SUOPAI/
    TIANAO

    Power
    1.5kw+2.2kw+0.37kw

    Size(mm)

    Configuration device
    Host Size: L*W*H4000mm*2000mm*1500mm
    Charge

    Automatic

    Cutter specification
    2*105*43mm
    Blanking

    Automatic

    Total weight
    1120kg

    Drive system

    Application tools

    A set of inner hexagonal wrenches

    Main power

    2.2kw Qiangsu/Yongshun

    Main engine speed
    1400r/min

    Transmission mode

    Triangular Belt Conveyor

    Bearing

    Wanxiang

    Our honor

    Corporate credit rating of "AAA", for manyyears by the Hebei Province PackagingFederation awarded; "Hebei excellentpackaging enterprise, was awarded:" onbehalf of the people of Hebei netinternational consumer rights day 3.15 good faith unit ", as many well-knowncolleges and universities" technologyresearch base "in 2016 by the HebeiScience and Technology Department" theidentification of SMEs in Hebei province".


    FAQ


    1. Price:
    We will provide you the FOB price at first time. The factory price,guarantee the lowest price. If you need CIF price, we will give you the quotation after asked the freight agent. The price is very transparent. And also you can use your freight agent.


    2. Pay method:
    30% deposit T/T in advance,pay the balance payment before shipment.


    3.Factory or trading company?
    We are both factory&trading company. You can find the answer from the company profile.
