5.5kw Double Axis Semi Automatic Roll Slitter Rewinder

    Buy cheap 5.5kw Double Axis Semi Automatic Roll Slitter Rewinder from wholesalers

    Buy cheap 5.5kw Double Axis Semi Automatic Roll Slitter Rewinder from wholesalers
    • Buy cheap 5.5kw Double Axis Semi Automatic Roll Slitter Rewinder from wholesalers

    5.5kw Double Axis Semi Automatic Roll Slitter Rewinder

    Ask Lasest Price
    Brand Name : Tiansheng
    Model Number : 1600C
    Certification : ISO9001
    Price : Price negotiation
    Payment Terms : T/T
    Supply Ability : 10+SET/SETS+per month
    Delivery Time : 40-45
    • Product Details
    • Company Profile

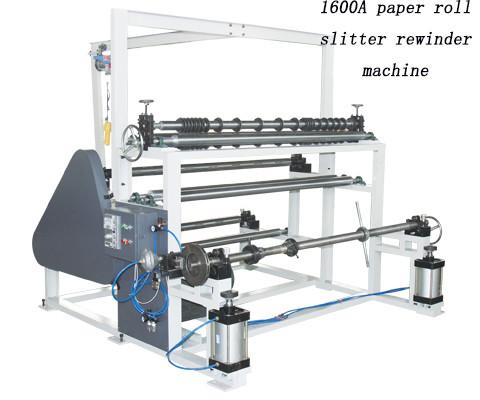

    5.5kw Double Axis Semi Automatic Roll Slitter Rewinder

    Kraft Paper Roll Slitter Rewinder Machine Paper Roll Slitting Machine


    paper roll slitter rewinder machine introduction


    1. Paper weight: 80-600g; base diameter 1200mm; base width 1600mm; paper roll slitter rewinder machine cutting width is more than 30mm

    2. paper roll sliitter rewinder machine Host motor for Shanghai strong speed (11kw), with adjustable speed function. Easy to adjust the production speed.

    3. The motor speed can be adjusted by frequency conversion.

    4. paper roll sliier rewinder machine Bending roll parting structure unique, completely avoid rewinding paper overlap. The radian of the bending roller can be adjusted at any time according to the paper.


    paper roll sliiter rewinder machine Technical Parameters
    Base paper width1600(mm)
    Diameter of base paper1200(mm)
    Rewinding diameter750(mm)
    Slitting width>35(mm)
    Base paper weight80-600g
    Number of cutters18pcs
    Slitting speed1-150(m/min)
    Speed controlFrequency control
    Main power5.5kw
    total weight1300kg
    Control System
    Main motor5.5kw
    Electrical componentsChint/Omron
    Button/emergency stopSiemens
    Cylinder componentsAirtac/Tianao
    Configuration device
    Tension adjustmentPneumatic brake
    Paper loading methodPneumatic
    Unloading methodElectric
    Winding methodGas up outside the closed
    Knife adjustment methodManual
    application tools1set

    paper roll slitter rewinder machineFeatures:

    1. Simple, convenient operation and low price.

    2. Fast speed.


    our client

    Companies rely on scientific andtechnological progress, the introduction ofhigh technology, is committed to newproduct development and technologyimprovement, and is equipped with perfectsales network and service system, theproducts have been sold all over thecountry, but also with domestic and foreigntrade import and export companycooperation, products have been exportedto South Asia, West Asia, Middle East, Africa, North and South America, Russia, Ukraine and other countries. At present, thecompany has set up its own foreign tradesales department, will further developforeign trade.
