    High Speed Automatic Spiral Paper Tube Machine For Pipe Cutting

    Ask Lasest Price
    Brand Name : TIANSHENG
    Model Number : CNC
    Certification : ISO9001
    Price : USD 9100per SET
    Payment Terms : T/T
    Supply Ability : 5SETPERMONTH
    Delivery Time : 45DAYS
    • Product Details
    • Company Profile

    High Speed Automatic Spiral Paper Tube Machine For Pipe Cutting

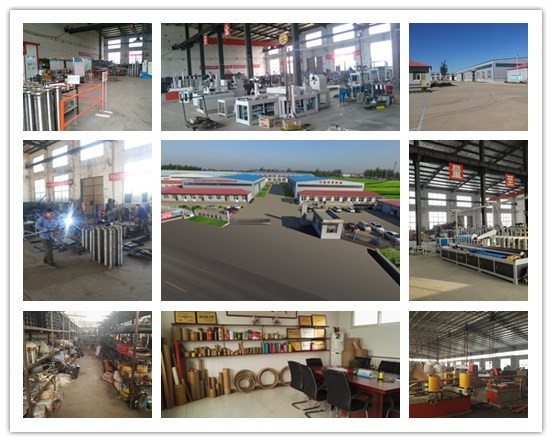

    Our workshop

    Our factory is a highly professional and experienced manufacturer of Paper Machine in China. We manufacture and supply a wide range to customers across the world and enjoys a good reputation both home and abroad.

    initpintu_


    Technical Parameters



    型号
    Type
    TSJQ-单刀数控精切机Single Tool CNC Fine Cutting Machine
    技术参数
    Technical parameter
    控制系统
    Control system
    纸管内径
    Paper tube diameter
    Φ76-152(mm)PLC控制器
    PLC controller
    信捷产品
    Xinjie
    纸管厚度
    Paper tube thickness
    3-15(mm)人机界面
    Interface
    昆仑产品
    Kunlun
    切管长度
    Length of cut pipe
    20-2700(mm)程序版本
    Program version
    cx-pq.04
    切刀组数
    Cutter number
    1组(标配)
    Group 1 (Standard)
    执行器件(接触器等)Actuator (contactor, etc.)正泰产品
    CHINT
    工作气压
    Working air pressure
    0.6Mpa信号元件(光电开关等)Signal element (photoelectric switch, etc.)倍福宁产品
    Pefun
    控制方式
    Control mode
    数控
    Numerical control
    按钮
    Button
    西门子
    Siemens
    电机功率
    Motor power
    主电机3.0kw/伺服电机3.0kw Main motor /
    Servo motor 3.0kw
    急停
    Emergency stop
    西门子
    Siemens
    操作人数
    Number of operators
    1旋钮knob西门子
    Siemens
    尺寸(毫米) Size(mm)气缸元件
    Cylinder element
    成迪/索派天奥产品CEHNGDI/SUOPAI/
    TIANAO
    主机尺寸:长*宽*高 Host Size: Long * Wide * High3200mm*1000*1300mm伺服电机
    Servo motor
    欧瑞产品
    Eura
    切刀规格
    Cutter specification
    2*100*22mm配置装置
    Configuration device
    总重量
    Total weight
    1200kg装料
    Charge
    手动
    Manual
    传动系统
    Drive system
    下料
    Blanking
    手动
    Manual
    主电机
    Main motor
    上海强速
    Shanghai qiangsu
    行走导轨
    Walking guideway
    方形直线
    square straight line
    切刀台电机
    Cutter table motor
    创正Chuangzheng刀与模具垂直调整
    Vertical adjustment of knife and die
    刀台与主机分离调整Separation and Adjustment of Tool Table and Main Machine
    主机转速
    Main engine speed
    1400r/min滚珠丝杠
    Ball screw
    4020
    传动方式
    Transmission mode
    同步带
    Synchronous belt
    抓管装置
    Pipe grasping device
    瞬间刹车
    Instant brake
    轴承
    Bearing
    万向产品Wanxiang配件
    Parts
    应用工具
    Application tools
    内六角扳手一套
    A set of inner hexagonal wrenches
    High Speed Automatic Spiral Paper Tube Machine For Pipe Cutting
    注:因产品技术不断更新,所有数据以产品实样为准!
    Note: Due to the continuous updating of product technology, all data are based on the actual product.



    Packaging Details

    All with stretch film machine, pulley or forklift truck towed to the wooden pallets, into the container.

    Automatic Core Paper Making Machine is with Flexible wrapping and wooden case.It is included one year guarantee time,whole life technical support,a set of tools and a box of vulnerable parts.
