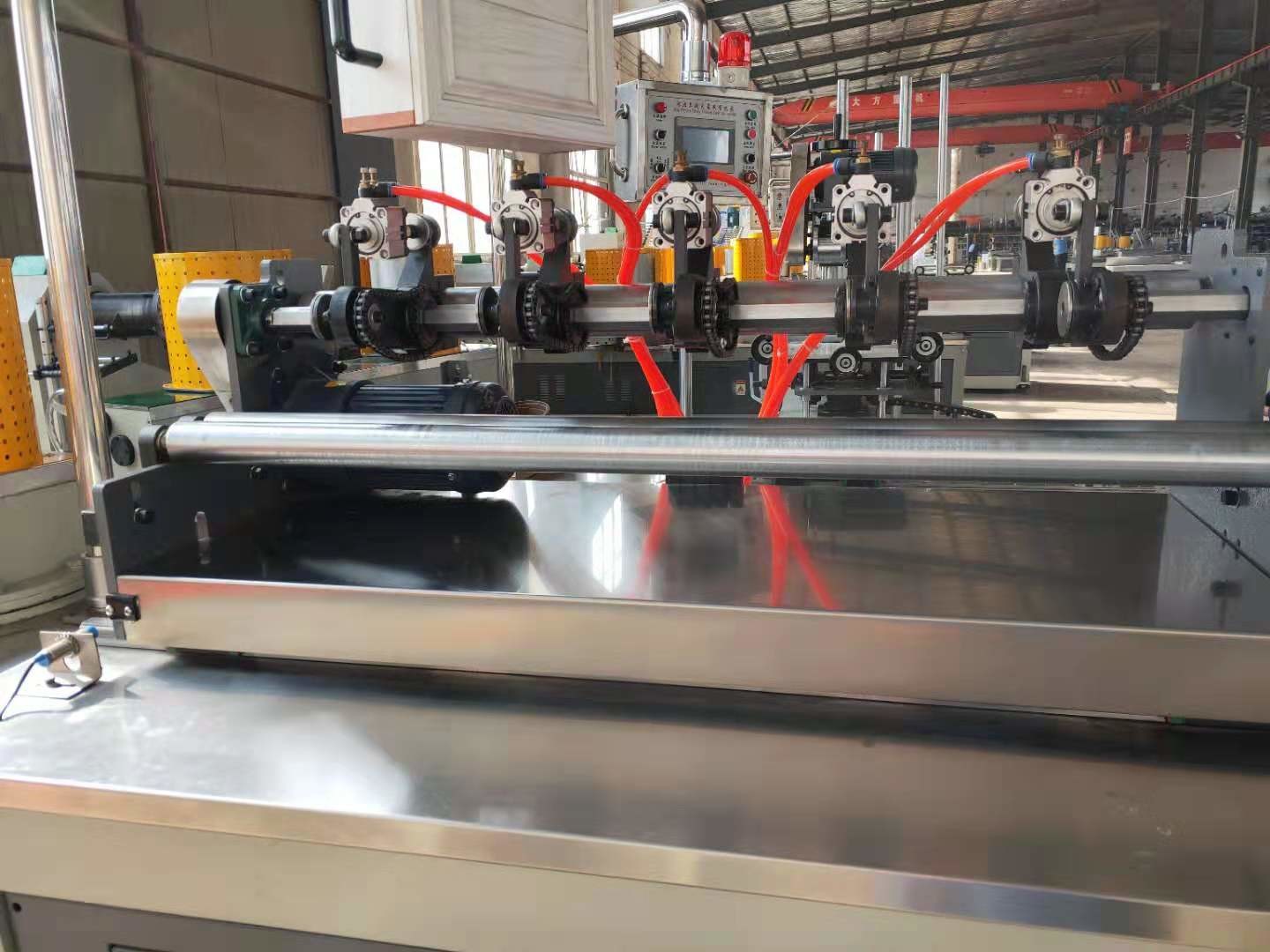

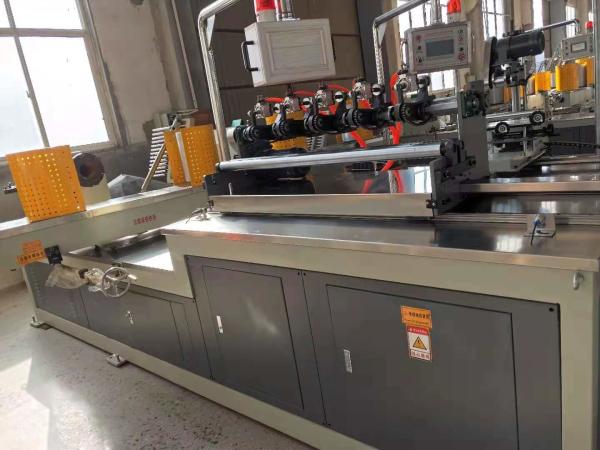

    Multi-knife Digital Control paper tube winding machine paper machinery

    Ask Lasest Price
    Brand Name : tiansheng
    Model Number : 150type
    Certification : ISO9001
    Price : usd21000set
    Payment Terms : T/T
    Supply Ability : 5 set per month
    Delivery Time : 45days
    • Product Details
    • Company Profile

    Multi-knife Digital Control paper tube winding machine paper machinery

    Spiral Paper Tube Core Winder Machine Multi Cutters

    Multi-knife Digital Control paper tube winding machine paper machinery

    Technical parameters


    主要规格及装备 Main specifications and equipment
    纸管机型号
    Model
    150型二机头多刀数控纸管机
    TSJG-150 Two-Head Multi-Tool CNC paper tube Machine
    技术参数
    Technical parameter
    控制系统
    Control system
    卷管纸张层数
    paper layer
    3-8
    3-8 plies
    PLC控制器
    PLC controller
    专用产品
    Special products
    纸管内径
    Inner diameter of tube
    20-150(mm)人机界面
    Interface
    专用产品
    Special products
    纸管厚度
    Thickness of tube
    1-5(mm)程序版本
    Program version
    CX-P9.04
    最短切管长度
    Minimum tube length
    90mm变频器
    Invertor
    安瑞吉产品
    ENERGY
    卷管速度
    Speed
    0-25(m/min)主要执行器件(接触器等)
    Main execution device
    正泰
    CHINT
    定长模式
    Fixed length mode
    数控(光控)
    CNC (Optical Control)
    按钮 Button西门子
    Siemens
    卷绕机头
    Winding head
    无阻力二机头
    No resistance two head
    急停 Stop西门子
    Siemens
    切割方式
    Cutting type
    数控自动跟踪切割
    CNC Automatic Tracking for Cutting
    旋钮 Knob西门子
    Siemens
    卷芯模具固定方式
    Fixing Method of Core winding mould
    法兰加顶紧
    Flange tightening
    信号元件(接近开关等)
    Signal elements
    沪工产品
    HUGONG
    上胶方式
    Gluing way
    双面上胶
    Double sides glue
    气动元件
    Pneumatic components
    索派/天奥/成迪产品
    Suopai/Tianao/Chengdi
    控制方式
    control mode
    变频调速
    Frequency control
    同步控制
    Synchronous control
    X轴伺服滚珠丝杆
    Shaft X-servo ball screw
    输入电压
    Input voltage
    380V/220V同步跟踪切管系统
    Synchronized tracking tube cutting system
    欧瑞伺服电机
    EURA servo motor

    Blade
    5 pcs气缸
    Cylinder
    亚德克 AirTAC
    操作人数
    Number of operators
    1-3电磁阀
    Solenoid valve
    亚德克 AirTAC
    尺寸(毫米) Size(mm)配置装置
    Configuration device
    主机尺寸:长**
    Main machine:L*W*H
    4900*1900mm*2100mm纸架类型
    Paper holder type
    直角固定式吊装上纸架
    Fixed right-angle paper rack
    占地面积:长*
    Coverage: L*W
    17000mm*7000mm供胶水
    Glue supply
    自动循环加热胶槽
    Automatic circulation heating glue tank
    轮毂直径
    Hub diameter
    242mm纸带供滑润油
    Lubricating oil supply
    自动润滑不锈钢盆
    Automatic lubrication stainless steel basin
    轮毂高度
    Hub height
    360mm底纸断纸
    Bottom paper breaking
    自动报警
    Automatic alarm
    主机重量
    Main machine weight
    2600kg张力调节
    Tension regulation
    机械调节
    Mechanical adjustment
    总重量
    Total weight
    3300kg底,面纸装置
    Device of bottom and surface paper
    不锈钢底纸架,面纸盆
    Stainless steel bottom paper holder,
    face paper basin
    传动系统
    Drive system
    导纸轮
    Guide wheel
    不锈钢管
    Stainless steel pipe
    主机功率
    Main power
    11kw 上海强速衡水永顺
    11kw Qiangsu/Yongshun
    主机台面
    Host table
    不锈钢板
    Stainless steel plate
    主机转速
    Main engine speed
    1400r/min主机角度
    Host angle
    电动调节
    Electric adjustment
    轮毂最高转速
    Max. speed of hub
    62r/min卷管芯棒
    Coil mandrel
    1 pcs
    轮毂输出扭矩
    Hub Output Torque
    6000N.m卷管皮带
    Coil belt
    1 pcs
    减速机型号
    Reducer Model
    WPO155 杭州萧山/杭州一鼎
    WPO155 XIAOSHAN/YIDING
    应用工具
    Application tools
    内六方1
    Inner hexagon 1 SET
    传动链型号
    Drive Chain Type
    12A*2
    轮毂驱动
    Wheel hub drive
    2轮驱动
    2 wheel drive
    直线导轨
    Linear guide rail
    方形
    square
    轴承
    Bearing
    万向轴承
    WANXIANG
    传动方式
    Transmission mode
    齿轮传动
    Gear drive
    注:因产品技术不断更新,所有数据以产品实样为准!Note: Due to the continuous updating of product technology, all data are based on the actual product.

    Companies rely on scientific andtechnological progress, the introduction ofhigh technology, is committed to newproduct development and technologyimprovement, and is equipped with perfectsales network and service system, theproducts have been sold all over thecountry, but also with domestic and foreigntrade import and export companycooperation, products have been exportedto South Asia, West Asia, Middle East, Africa, North and South America, Russia, Ukraine and other countries. At present, thecompany has set up its own foreign tradesales department, will further developforeign trade.our client
