    High Speed 1600d Slitter Rewinder Cnc Tool Setting Iso9001

    Ask Lasest Price
    Brand Name : Tiansheng
    Model Number : 1600D
    Certification : ISO9001
    Price : Price negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 10+SET/SETS+per month
    Delivery Time : 40-45
    • Product Details
    • Company Profile

    High Speed 1600d Slitter Rewinder Cnc Tool Setting Iso9001


    TSFQ-1600D CNC tool setting Automatic High Speed paepr Slitter rewinder Machine


    Machine introduction


    1. Applicable base paper weight 80-600g; base paper diameter 1200mm; base paper width 1600mm; slitting width ≥30mm (tools can be configured according to different needs of customers)
    2. The host motor is Shanghai Qiangsu Hengshui Yongshun (11kw), with adjustable speed. Easy to adjust production speed.
    3. The inverter is a product of Enrici. This product is a well-known domestic brand with high practical value, low failure rate and low repair rate. The motor is controlled by frequency conversion to adjust the speed of the machine.

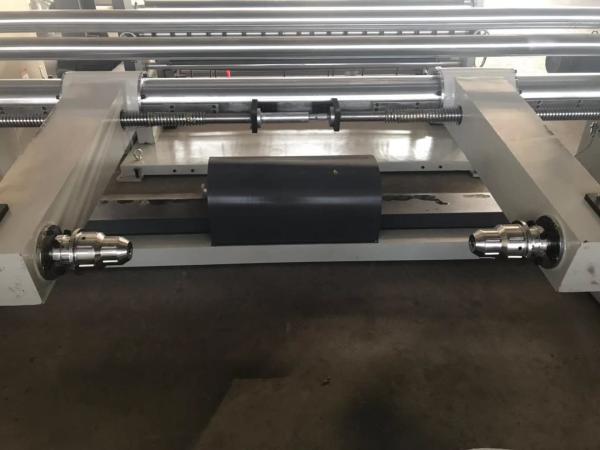

    4. The paper feeding method is shaftless hydraulic paper feeding, which is stable and replaces the traditional paper feeding with shaft, which makes paper feeding faster and saves labor. The clamping is also a hydraulic device, which replaces the electric clamping to relax. The hydraulic clamping is not easy to damage the inner core of the paper shaft and also protects the mechanical part.


    Technical parameter


    Technical parameter

    Parent roll width
    1600(mm)

    Parent roll width
    1200(mm)

    Rewind diameter
    1200(mm)

    Slit width
    >30(mm)

    Slitting capability
    80-600g

    The main power
    15kw

    Paper on the way

    Full Hydraulic Shaftless Support

    Number of cutter
    18pcs

    Winding way

    Gas up outside the closed

    Paper down the way

    Hydraulic pressure

    Blastment wayde adjust

    CNC tool setting

    Control of motor speed control

    Frequency control

    Cutting speed
    1-300(m/min)

    The input power
    380V 220V

    Operator
    1

    High Speed 1600d Slitter Rewinder Cnc Tool Setting Iso9001


    main point

    All of our machines will be tested and had trial production in our factory before leaving our factory and they are shipped out only after customers are satisfied with them. Customers can send your technicians or the Third party inspection agency to our factory to check and accept machines before delivery.
