    Light Control Paper Tube Machine Four Heads Inner Diameter Is 30 - 200mm

    Ask Lasest Price
    Brand Name : Tiansheng
    Model Number : TSJG-200
    Certification : Iso9001
    Price : Negotiation
    Payment Terms : T/T, L/C
    Supply Ability : 5 Sets per month
    Delivery Time : 50 Days
    • Product Details
    • Company Profile

    Light Control Paper Tube Machine Four Heads Inner Diameter Is 30 - 200mm

    Light Control Paper Tube Machine Four Heads Inner Diameter Is 30 - 200mm


    1.Product Generalization


    1) Paper tube machine is a kind of machine which can make narrow paper strips into paper tubes.


    2) There are many types of paper tube machine, the most common one is spiral paper tube machine and flat roll paper tube machine.


    3) Our paper tube machine type is spiral paper tube machine.


    2.Product Description


    1) It is suitable for making paper tube with inner diameter of 30-200mm and thickness of 1-15mm.


    2) According to different paper tubes, the speed is between 0-20 (M / min).


    3) The non resistance four machine head makes the strength of the paper tube greatly improved.


    3.Technical Parameter


    TSJG-200 Four Heads Paper Tube Machine

    Paper layer3-25layers
    Inner diameter of tube30-200(mm)
    Thickness of tube2-15(mm)
    Speed0-20(m/min)
    Fixed length modeLight Control
    Winding headDouble head single belt
    Control modeFrequency conversion control
    Input voltage380V/220V

    4.Product size


    Main machine:L*W*H5200mm*1900mm*2100mm
    Coverage: L*W20000mm*9000mm
    Hub diameter294mm
    Hub height360mm/430mm
    Host weight3050kg
    Total weight4060kg

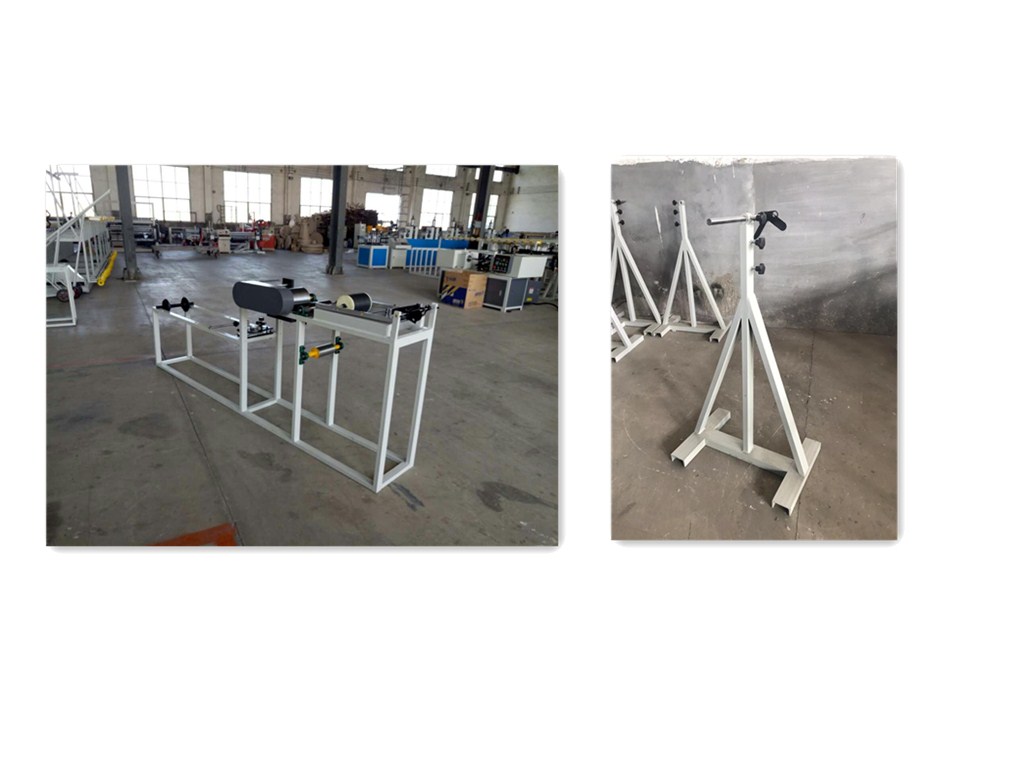

    5.Product details



    6.FAQ


    Q:Whether the product can achieve quality assurance?

    A:Our factory has applied for ISO9001 quality inspection, our equipment is of high quality and high quality.


    Q: what kind of payment you accept?

    A:(1) TT:30%TT as depiosit+70%TT after machine ready before delive

    (2) LC:100%LC as sight or 30%TT+70%LC at sight.


    Q: your warrant and after-sale?

    A: 12 month for whole machine quality (not include easy broken spare parts)we offer whole life technical support freely, and offer any related guide by video manual ect.


    For other questions we do not mention here,please feel free contact us.
