    spiral cardboard paper tube core making machine,corrugated paper production line

    Ask Lasest Price
    Brand Name : tiansheng
    Model Number : 60type
    Certification : ISO
    Price : 8000usd set
    Payment Terms : T/T
    Supply Ability : 5set per month
    Delivery Time : 45days
    • Product Details
    • Company Profile

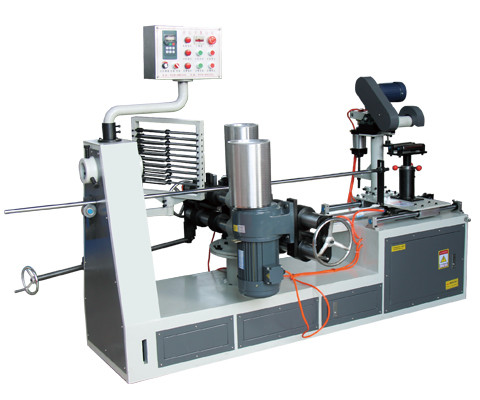

    spiral cardboard paper tube core making machine,corrugated paper production line


    small type paper tube machine


    spiral cardboard paper tube core making machine,corrugated paper production line

    Technical parameter

    纸管机型号
    Model
    60型二机头纸管机
    TSJG-60 Two-Head paper tube Machine
    技术参数
    Technical parameter
    控制系统
    Control system
    卷管纸张层数
    paper layer
    2-7
    2-7 plies
    变频器
    Invertor
    安瑞吉产品
    ENERGY
    纸管内径
    Inner diameter of tube
    15-60(mm)主要执行器件(接触器等)
    Main execution device
    正泰
    CHINT
    纸管厚度
    Thickness of tube
    2-5(mm)按钮 Button西门子
    Siemens
    卷管速度
    Speed
    1-25(m/min)急停 Stop西门子
    Siemens
    定长模式
    Fixed length mode
    光控(红外线)
    Light Control (Infrared)
    旋钮 Knob西门子
    Siemens
    卷绕机头
    Winding head
    双机头单皮带
    Double head single belt
    信号元件(接近开关等)
    Signal elements
    沪工产品
    HUGONG
    切割方式
    Cutting type
    单圆刀切割
    Single knife cutting
    气动元件
    Pneumatic components
    索派/天奥/成迪产品
    Suopai/Tianao/Chengdi
    卷芯模具固定方式
    Fixing Method of Core winding mould
    螺栓顶紧
    Bolt tightening
    同步控制
    Synchronous control
    PLC(专用)
    PLCS(pecial-purpose)
    上胶方式
    Gluing way
    双面上胶
    Double sides glue
    定长方式
    Fixed length mode
    接近开关
    Proximity switch
    控制方式
    control mode
    变频调速
    Frequency control
    气缸
    Cylinder
    亚德克 AirTAC
    输入电压
    Input voltage
    380V/220V电磁阀
    Solenoid valve
    亚德克 AirTAC
    操作人数
    Number of operators
    1-3配置装置
    Configuration device
    尺寸(毫米) Size(mm)切台台面
    Cutting table surface
    不锈钢台面
    Stainless steel table-board
    主机尺寸:长**
    Main machine:L*W*H
    3100mm*1500mm*1800mm纸架类型
    Paper holder type
    直角固定式吊装上纸架
    Fixed right-angle paper rack
    占地面积:长*
    Coverage: L*W
    11000m*5000mm供胶水
    Glue supply
    自动循环加热胶槽
    Automatic circulation heating glue tank
    轮毂直径
    Hub diameter
    200mm纸带供滑润油
    Lubricating oil supply
    自动润滑不锈钢盆
    Automatic lubrication stainless steel basin
    轮毂高度
    Hub height
    300mm张力调节
    Tension regulation
    机械调节
    Mechanical adjustment
    主机重量
    Main machine weight
    900kg底,面纸装置
    Device of bottom and surface paper
    不锈钢底纸架,面纸盆
    Stainless steel bottom paper holder,
    face paper basin
    总重量
    Total weight
    1400kg导纸轮
    Guide wheel
    不锈钢管
    Stainless steel pipe
    传动系统
    Drive system
    卷管芯棒
    Coil mandrel
    1 pcs
    主机功率
    Main power
    2*2.2kw 上海西米克
    SEIMEC from Shanghai
    卷管皮带
    Coil belt
    1 pcs
    主机转速
    Main engine speed
    1400r/min下料架
    Blanking rack
    不锈钢自动下料
    Automatic blanking rack
    轮毂最高转速
    Max. speed of hub
    72r/min应用工具
    Application tools
    内六方1
    Inner hexagon 1 SET
    轮毂输出扭矩
    Hub Output Torque
    4000N.m
    轮毂驱动
    Wheel hub drive
    2轮驱动
    2 wheel drive
    切刀电机
    Cutting-blade motor
    0.2kw 1:15上海欧特
    OTG from shanghai
    轴承
    Bearings
    万向轴承
    Wanxiang bearings

    Company profile

    Fucheng county tian sheng paper tube machinery co., LTD is located in fucheng county, hengshui city, hebei province. Our company covers an area of 20000 square meters, factory building and office area of 12000 square meters.
