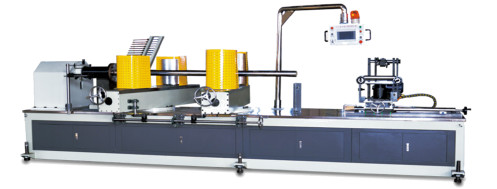

    High-quality safe ditigal control Electrically adjust the angle paper tube making machine

    Ask Lasest Price
    Brand Name : tiansheng
    Model Number : 200type
    Certification : iso9001
    Price : usd23000set
    Payment Terms : T/T
    Supply Ability : 5setpermonth
    Delivery Time : 45days
    • Product Details
    • Company Profile

    High-quality safe ditigal control Electrically adjust the angle paper tube making machine

    paper tube making machine


    High-quality safe ditigal control Electrically adjust the angle paper tube making machine

    Technical parameters


    纸管机型号
    Model
    200型四机头数控纸管机Model 200 Four-head CNC Pipe Machine
    技术参数
    Technical parameter
    控制系统
    Control system
    卷管纸张层数
    paper layer
    3-25layerPLC控制器 PLC controller专业产品 Professional products
    纸管内径
    Inner diameter of tube
    30-200(mm)人机界面 Interface专业产品 Professional products
    纸管厚度
    Thickness of tube
    2-15(mm)程序版本 Program versionCX-P 9.04
    卷管速度
    Speed
    0-27(m/min)变频器 Frequency converter安瑞吉产品 ENERGY
    定长模式
    Fixed length mode
    数控(光控)
    CNC (Optical Control)
    中间继电器/接触器Intermediate relay/contactor正泰 chint
    卷绕机头
    Winding head
    无阻力四机头 No resistance four nose信号元件(光电开关等)Signal element (photoelectric switch, etc.)倍福宁品牌/沪工pefun/hugong
    切割方式
    Cutting type
    数控自动跟踪切割
    CNC Automatic Tracking for Cutting
    按钮 Button西门子 Siemens
    卷芯模具固定方式Fixing Method of Core Rolling Die法兰加顶紧
    Flange tightening
    急停 Emergency stop西门子 Siemens
    上胶方式
    Gluing way
    双面上胶
    Double sides glue
    旋钮 knob西门子 Siemens
    控制方式
    control mode
    变频调速
    Frequency control
    气动元件
    Pneumatic components
    索派天奥/成迪品牌suopai/tianao/chengdi
    输入电压
    Input voltage
    380V/220V同步控制
    Synchronous control
    X轴伺服滚珠丝杠X-axis servo ball screw
    操作人数
    Number of operators
    1-3people同步跟踪切管系统Synchronized tracking tube cutting system欧瑞伺服电机 EURA Servo Motor
    尺寸(毫米) Dimensions (mm)切刀升降 Cutter lift索派天奥品牌 suopai/tianao
    主机尺寸:长**
    Main machine:L*W*H
    5200mm*1900mm*2100mm按钮急停 Button stop江阴长江品牌 Jiangyin Changjiang Brand
    占地面积:长*
    Coverage: L*W
    20000mm*9000mm气缸 Cylinder亚德克 Al DEK
    轮毂直径
    Hub diameter
    294mm电磁阀 Solenoid valve亚德克 Al DEK
    轮毂高度
    Hub height
    360mm∕430mm
    皮带辊距离
    Distance of belt rollers
    590-1190mm配置装置 Configuration device
    主机重量 Host weight3450kg纸架类型 Paper holder type直角固定式吊装上纸架 Right angle fixed hoisting paper holder
    总重量 Total weight4460kg供胶水 Glue supply自动循环上胶,可加热胶槽
    Automatic cycle gluing, heated glue tank
    传动系统 drive system纸带供滑润油 Paper tape for lubricating oil自动润滑不锈钢盆 Automatic lubrication stainless steel basin
    主机功率 Main power上海强速衡水永顺 15kw shanghai qiangsu,hengshui yongshun底纸断纸 Bottom paper breaking自动报警 automatic alarm
    主机转速
    Main engine speed
    1400r∕min张力调节 Tension adjust机械调节 Mechanical adjustment
    轮毂最高转速
    Max. speed of hub
    62r∕min底,面纸装置 Bottom and Top Paper Device不锈钢底纸架,面纸盆Stainless steel bottom paper holder, face paper basin
    轮毂输出扭矩
    Hub Output Torque
    8500NM导纸轮 Guide wheel不锈钢管 Stainless steel pipe
    减速机型号
    Reducer Model
    杭州萧山/杭州一鼎WPO155 hangzhou xiaoshan /yiding主机台面 Host Mesa不锈钢板 Stainless steel plate
    直线导轨 Linear guide rail方形
    Square
    主机角度 Host angle电动调节 Electric adjustment
    传动链型号 Drive Chain Type12A×2卷管芯棒 Coil mandrel1
    轮毂驱动 Hub drive四轮驱动 Four wheel drive卷管皮带 Coil belt2
    切刀电机 Cutter motor0.4kwGear motor Shanghai Ott齿轮电机 上海欧特下料架 Blanking rack不锈钢自动下料 Stainless steel automatic blanking
    传动方式 Transmission mode齿轮传动 gear drive应用工具 Application tools内六方1 Neihexagonal 1 set
    轴承 Bearing万向轴承 WANXIANG
    注:因产品技术不断更新,所有数据以产品实样为准.Note: Due to the continuous updating of product technology, all data are based on the actual product.
    our clients
    Companies rely on scientific andtechnological progress, the introduction ofhigh technology, is committed to newproduct development and technologyimprovement, and is equipped with perfectsales network and service system, theproducts have been sold all over thecountry, but also with domestic and foreigntrade import and export companycooperation, products have been exportedto South Asia, West Asia, Middle East, Africa, North and South America, Russia, Ukraine and other countries. At present, thecompany has set up its own foreign tradesales department, will further developforeign trade.our client

    High-quality safe ditigal control Electrically adjust the angle paper tube making machine


    Our workshop

    Our factory is a highly professional and experienced manufacturer of Paper Machine in China. We manufacture and supply a wide range to customers across the world and enjoys a good reputation both home and abroad.

    1

    Packaging Details

    All with stretch film machine, pulley or forklift truck towed to the wooden pallets, into the container.

    Automatic Core Paper Making Machine is with Flexible wrapping and wooden case.It is included one year guarantee time,whole life technical support,a set of tools and a box of vulnerable parts.
